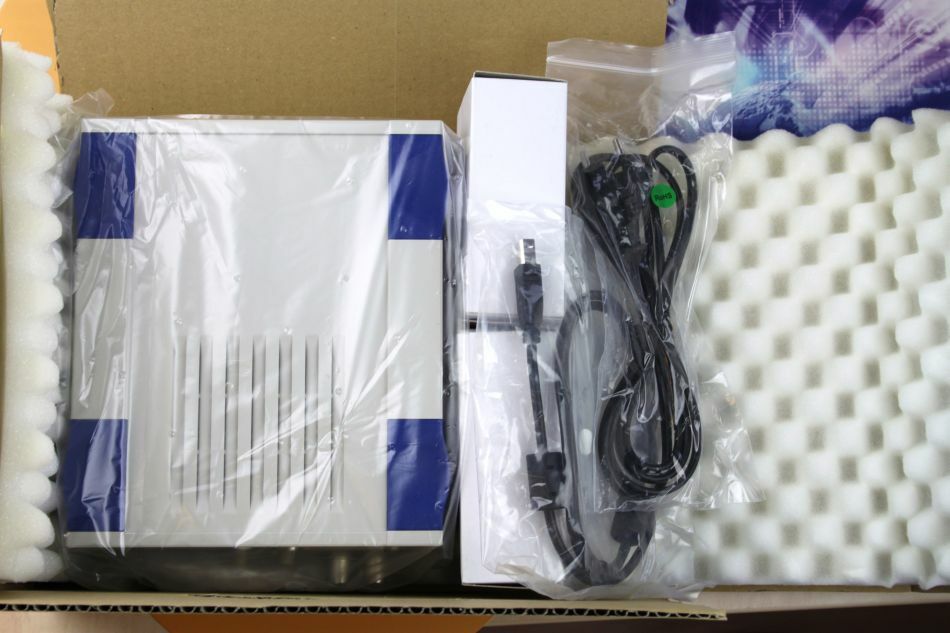

Alitronika At660usb Dvb-s2/s Receiver, Demodulator, Recorder, Converter & Player

  AT660USB

  Multi Standard

  Receiver/Recorder/Converter/Player

  DVB-S2/S to USB, ASI & SPI

  DVB-ASI, DVB-SPI Outputs

  Free Application Software

Standard Features:

Combined DVB-S2/S Input and DVB-ASI/SPI Output
High Speed USB 2.0
Windows Drivers & SDK
Linux Drivers
Free Application Software, DVSStation3
  Input
DVB-S2/S Direct TV Compliant QPSK Reception
Demodulation Standards: DVB-S, DVB-S2, DVB/DSS
Input Frequency Range: 950 MHz to 2150 MHz
Symbol Rate: 2 Mbaud to 45 Mbaud
Channel Bitrate: 190Mbit/s
Supports 188, 204 Transport Packet Sizes
  Output
RF Loop Through Output
Simultaneous two Serial (ASI) & Parallel (SPI) Outputs
Supports DVB According to Standard A1010 Rev1 & EN50083

Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT660USB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
DVB-S2/S to DVB-ASI/SPI Conversion
MPEG-II Transport Stream Recording,Monitoring & Processing

Specification:

On Board Buffer: 16 Mbytes
RF Tuner Connector:
  - 75 Ohms F Type
Loop Through Connector:
  - 75 Ohms F Type
Input Frequency Range: 950 MHz to 2150 MHz
Input Signal Level: -65dBm to -25dBm @ 27.5 Mbaud
Maximum Symbol Rate:
  - QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:30MSPS, DVB:2-45MSPS
DisEqc: DisEqC 2.X
Standards: DVB-S2/S & Direct TV
Demodulation Standard: DVB-S2 & DVB/DSS compliant
Modulation Method:
  - DVB-S:QPSK
  - DVB-S2: QPSK, 8PSK, 16APSK & 32APSK
Supported Code Rate:
  - QPSK: 1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10
  - 8PSK: 3/5,2/3,3/4,4/5,5/6,8/9,9/10
  - 16APSK: 2/3,3/4,4/5,5/6,8/9,9/10
  - 32APSK: 3/4,4/5,5/6,8/9,9/10
DVB-ASI Connector: 75 Ohms BNC
Output Signal level: 1.0Vp-p nominal
DVB-SPI Connector: 25-pin sub-D
DVB-ASI Output Bit Rate: 0 to 214 Mbit/s
DVB-SPI Output Bit Rate: 0 to 108 Mbit/s
DVB-ASI Output Clock: 270 MHz
DVB-SPI Output Clock: 0 to 13.5 MHz
DVB-SPI Output Level: LVDS
